Injection Molded Race Rod Ends
-

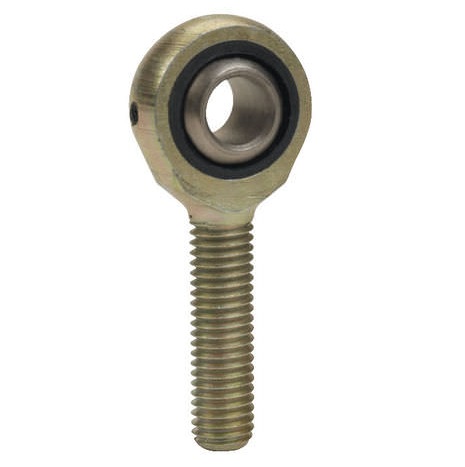

NM Series Carbon Steel Injection Molded
NM3, NM4, NM5, NM6, NM7, NM8, NM10, NM12, NM14, NM16
Bore Size: 0.19"-1"
Thread Range: 10-32 to 1 1/4-12 UNF-3A
Surface Treatment: Zinc Plated Yellow -

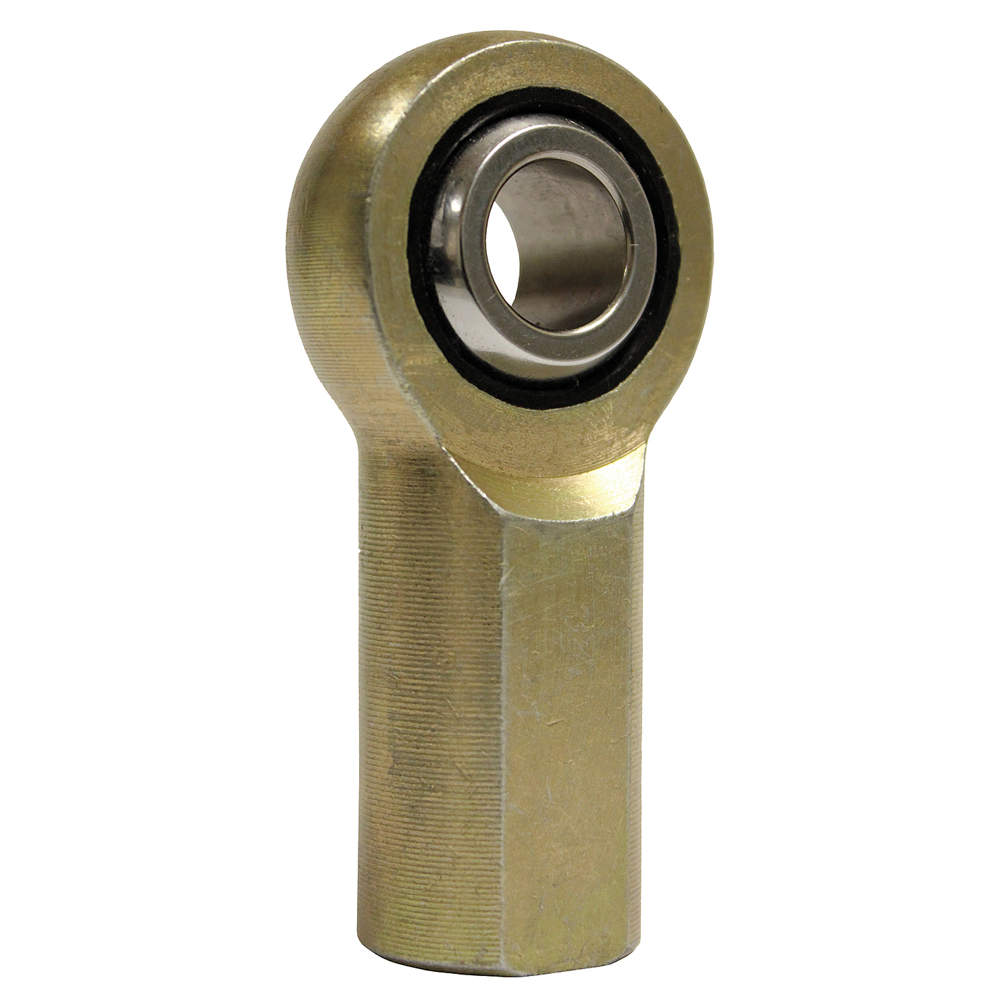

NF Series Carbon Steel Injection Molded
NF3, NF4, NF5, NF6, NF7, NF8, NF10, NF12, NF14, NF16
Bore Size: 0.19"-1"
Thread Range: 10-32 to 1 1/4-12 UNF-2B
Surface Treatment: Zinc Plated Yellow -

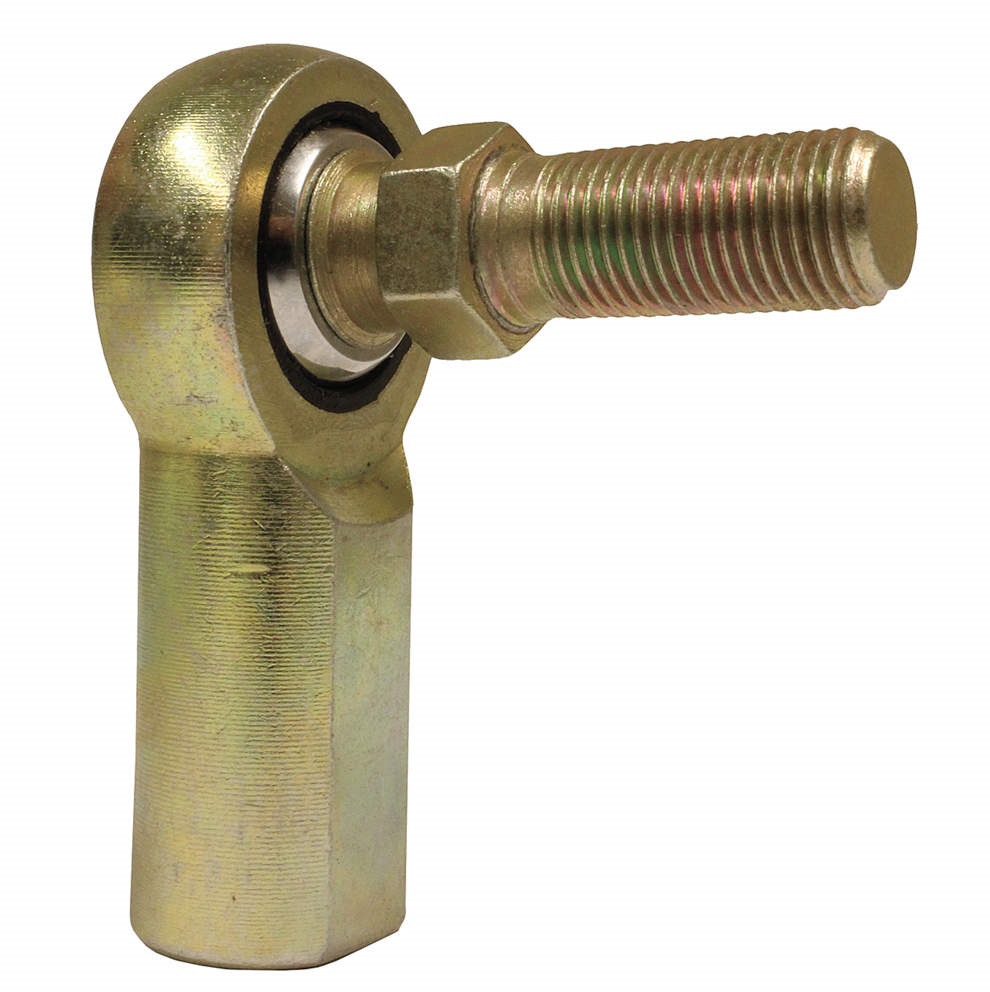

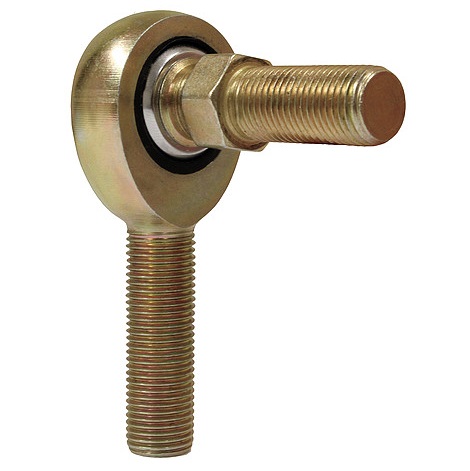

NM-S Series Carbon Steel w/ Stud
NM3S, NM4S, NM5S, NM6S, NM7S, NM8S, NM10S, NM12S, NM14S, NM16S
Bore Size: 1/4"-1"
Thread Range: 10-32 to 1 1/4-12 UNF-3A
Surface Treatment: Zinc Plated Yellow -
NF-S Series Carbon Steel w/ Stud
NF3S, NF4S, NF5S, NF6S, NF7S, NF8S, NF10S, NF12S, NF14S, NF16S
Bore Size: 1/4"-1"
Thread Range: 10-32 to 1 1/4-12 UNF-2B
Surface Treatment: Zinc Plated Yellow -

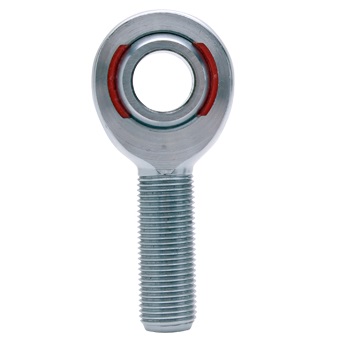

WMX Series Chromoly Steel
WMX3, WMX4, WMX5, WMX6, WMX7, WMX8, WMX10, WMX12, WMX14, WMX16
Bore Size: 0.19"-1"
Thread Range: 10-32 to 1 1/4-12 UNF-3A
Surface Treatment: Hard Chrome Plated -

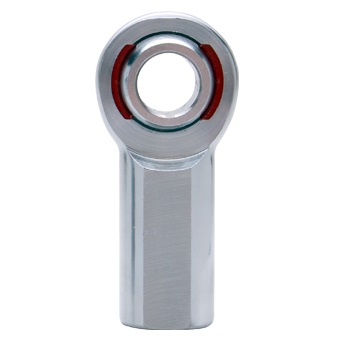

WFX Series Chromoly Steel
WFX3, WFX4, WFX5, WFX6, WFX7, WFX8, WFX10, WFX12, WFX14, WFX16
Bore Size: 0.19"-1"
Thread Range: 10-32 to 1 1/4-12 UNF-2B
Surface Treatment: Hard Chrome Plated
