3-Piece Rod Ends
-

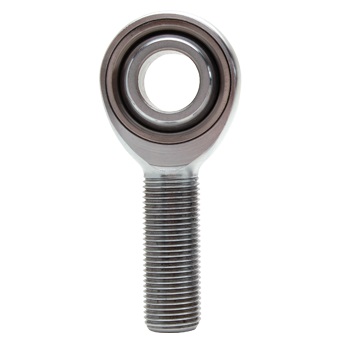

AM Series Carbon Steel
AM3, AM4, AM5, AM6, AM7, AM8, AM10, AM12, AM14, AM16
Bore Size:0.19"-1"
Thread Range: 10-32 to 1 1/4-12 UNF-3A
Surface Treatment: Zinc Plated
-

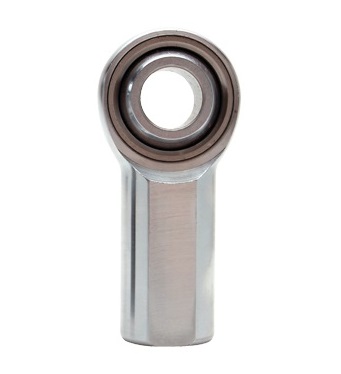

AF Series Carbon Steel
AF3, AF4, AF5, AF6, AF7, AF8, AF10, AF12, AF14, AF16
Bore Size:0.19"-1"
Thread Range: 10-32 to 1 1/4-12 UNF-3B
Surface Treatment: Zinc Plated -
AMX Series Chromoly Steel
AMX4, AMX5, AMX6, AMX7, AMX8, AMX10, AMX12, AMX14, AMX16
Bore Size: 1/4"-1"
Thread Range: 1/4-28 to 1 1/4-12 UNF-3A
Surface Treatment: Zinc Plated -
AFX Series Chromoly Steel
AFX4, AFX5, AFX6, AFX7, AFX8, AFX10, AFX12, AFX14, AFX16
Bore Size: 1/4"-1"
Thread Range: 1/4-28 to 1 1/4-12 UNF-3B
Surface Treatment: Zinc Plated -
SAM Series Stainless Steel
SAM5, SAM6, SAM7, SAM8, SAM10, SAM12, SAM14, SAM16
Bore Size: 0.3125"-1"
Thread Range: 5/16-24 to 1 1/4-12 UNF-3A -
SAF Series Stainless Steel
SAF5, SAF6, SAF7, SAF8, SAF10, SAF12, SAF14, SAF16
Bore Size: 0.3125"-1"
Thread Range: 5/16-24 to 1 1/4-12 UNF-3B -

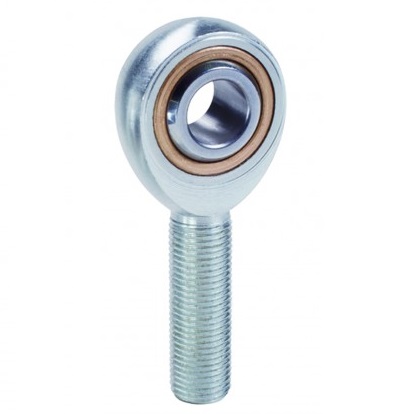

POS Series Carbon Steel Metric
POS5, POS6, POS8, POS10, POS12, POS14, POS16, POS18, POS20, POS22, POS25, POS28, POS30
Bore Size: 5- 30mm
Thread Range: M5 to M30
Surface Treatment: Zinc Plated -

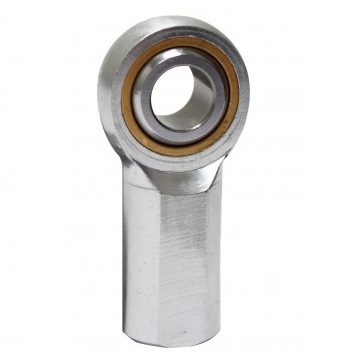

PHS Series Carbon Steel Metric
PHS5, PHS6, PHS8, PHS10, PHS12, PHS14, PHS16, PHS18, PHS20, PHS22, PHS25, PHS28, PHS30
Bore Size: 5- 30mm
Thread Range: M5 to M30
Surface Treatment: Zinc Plated
